Wire Rope Swage Stud Terminals With Nut - 316 / A4 Stainless Steel
Product Description
Creates a secure, permanent end fitting for wire rope assemblies.
Material
316 / A4 Stainless Steel

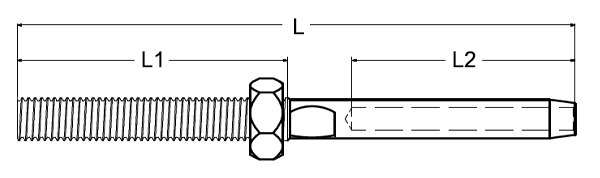

| Product Code | Thread | Wire Ø | L | L1 | L2 | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| SWAGE-STUD-TERMINAL-N-A4-4002 | M4 | 2 | 73 | 38 | 24 | £7.57 | i |
10
|
Enquire Now |
| SWAGE-STUD-TERMINAL-N-A4-50025 | M5 | 2.5 | 86 | 40 | 32 | £6.42 | 100 |
10
|
|
| SWAGE-STUD-TERMINAL-N-A4-6003 | M6 | 3 | 100 | 48 | 39 | £7.86 | 100 |
10
|
|
| SWAGE-STUD-TERMINAL-N-A4-8004 | M8 | 4 | 117 | 57 | 45 | £5.02 | 85 |
5
|
|
| SWAGE-STUD-TERMINAL-N-A4-1005 | M10 | 5 | 130 | 63 | 52 | £6.84 | 80 |
5
|
|
| SWAGE-STUD-TERMINAL-N-A4-1206 | M12 | 6 | 162 | 80 | 64 | £6.06 | i |
2
|
Enquire Now |
| SWAGE-STUD-TERMINAL-N-A4-1608 | M16 | 8 | 200 | 100 | 80 | £6.15 | 20 |
1
|
|
| SWAGE-STUD-TERMINAL-N-A4-2010 | M20 | 10 | 230 | 119 | 90 | £8.85 | i |
1
|
Enquire Now |
| SWAGE-STUD-TERMINAL-N-A4-2012 | M20 | 12 | 245 | 120 | 105 | £12.83 | i |
1
|
Enquire Now |
