Product Code: SSR-EMM-175

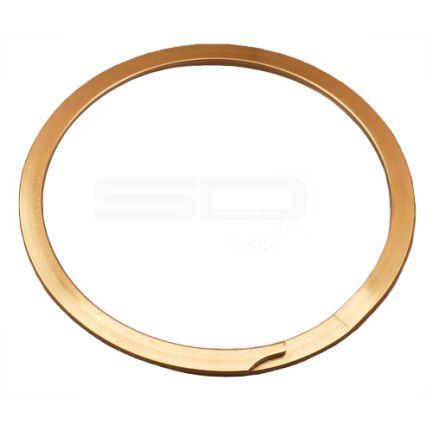

External, Medium Duty, Metric
These rings offer the greatest economy in price and size. They are able to handle high thrust capacity.
Standard next day delivery - £6.90
Next day delivery before noon - £24
Free delivery on all orders over £250
| Shaft Dia. (mm) Ds | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Section (S and Tol.) | Ring Thickness (T and Tol.) | Thrust Load (lbs.) Groove Safety Factor of 2 | Thrust Load (lbs.) Ring Safety Factor of 3 |
|---|---|---|---|---|---|---|---|
| 175 | 170.2 (+0.4/-0.0) | 2.4 (+0.15/-0.0) | 169 (+0.0/-1.52) | 7.92 (+0.1/-0.2) | 2.18 (±0.1) | 290001 | 347066 |
