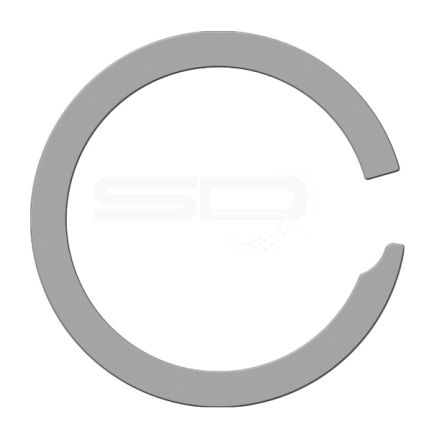

SSR-EMH Spiral Retaining Rings - Metric - SSR-EMH-57-M

Product Description

External, Heavy Duty, Metric

The rigors of the toughest applications are easily handled by this external series. Its large size and ease of application and removal transfers into an assurance of quality for demanding uses.

Shaft Dia. (mm) Ds Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3
57 53.6 (±0.2) 2.15 (+0.13/-0.0) 53.17 (+0.0/-0.64) 4.27 (+0.1/-0.15) 1.98 66907 102673
