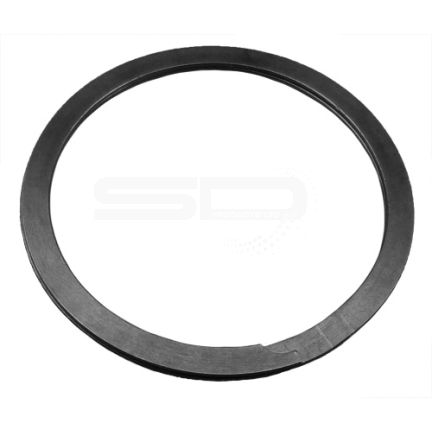

SSR-EMH Spiral Retaining Rings - Imperial - SSR-EMH-375-I

Product Description

External, Medium-Heavy Duty

Externally fitted to up to 10in. shaft diameter, these rings can handle all but the most rigorous applications.

Shaft Dia. (In.) Ds Groove Depth (d) Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3
3.75 0.087 3.577 (±0.006) 0.12 (+0.005/-0.0) 3.55 (+0.0/-0.04) 0.25 (±0.005) 0.111 (±0.003) 23060 52310
