SSR-ELD Spiral Retaining Rings - SSR-ELD-331

Product Code: SSR-ELD-331

simple_product

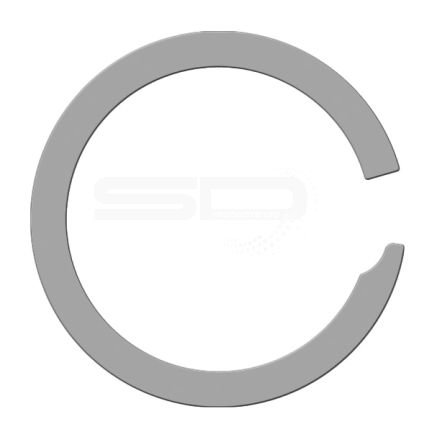

For illustration purposes only

Product Description

External, Light Duty

These single-turn retaining rings are ideal for light-duty applications, or where axial positioning is the primary function.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 13 + 9 =

* Required Fields

  • Standard next day delivery - £6.90

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Shaft Dia. (In.) Ds Groove Depth (d) Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3
3.312 0.046 3.22 (±0.006) 0.044 (+0.003/-0.0) 3.186 (+0.0/-0.03) 0.188 (±0.005) 0.039 (±0.002) 10770 17040
