SR-EPOM Shaft Rings - SR-EPOM-20
Product Description
Self-Locking, External “Push-On”, Metric

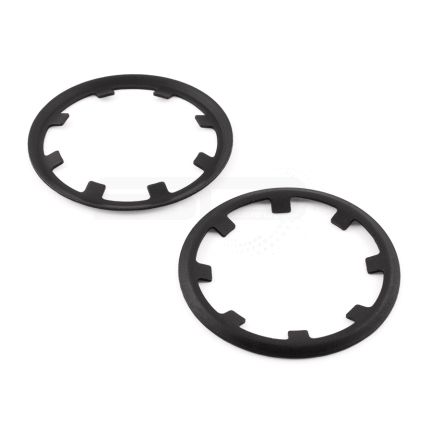

This ring features a curved outer rim with a series of prongs protruding into the centre. The ends create interference with the shaft when the ring is installed and a load introduced to the other side.
| Shaft Diameter (Ds and Tol.) | Thickness T | Groove Dimensions (Dg and Tol.) | Groove Dimensions (W Min) | Edge Margin Y | Inside Diameter (I.D.) | Minimum Distance | Number of Prongs | Outside Diameter (O.D.) | Thrust Load N |
|---|---|---|---|---|---|---|---|---|---|
| 20 (+0.0/-0.13) | 0.5 | 19.75 (-0.13) | 1 | 2 | 19.5 | 3.5 | 8 | 29 | 950 |
Special Price
£10.06
Regular Price
£10.06
- Buy 50 packs for £5.52 each and save 14%
- Buy 100 packs for £4.42 each and save 43%
SR-EPOM Shaft Rings - SR-EPOM-20 is available to buy in increments of 100
