SR-EPOM Shaft Rings - SR-EPOM-18

Product Description

Self-Locking, External “Push-On”, Metric

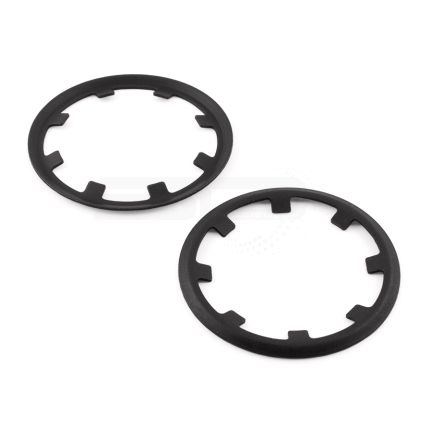

This ring features a curved outer rim with a series of prongs protruding into the centre. The ends create interference with the shaft when the ring is installed and a load introduced to the other side.

Shaft Diameter (Ds and Tol.) Thickness T Groove Dimensions (Dg and Tol.) Groove Dimensions (W Min) Edge Margin Y Inside Diameter (I.D.) Minimum Distance Number of Prongs Outside Diameter (O.D.) Thrust Load N
18 (+0.0/-0.11) 0.4 17.8 (-0.11) 1 2 17.6 3.5 8 27 850
