SR-EPOM Shaft Rings - SR-EPOM-10

Product Description

Self-Locking, External “Push-On”, Metric

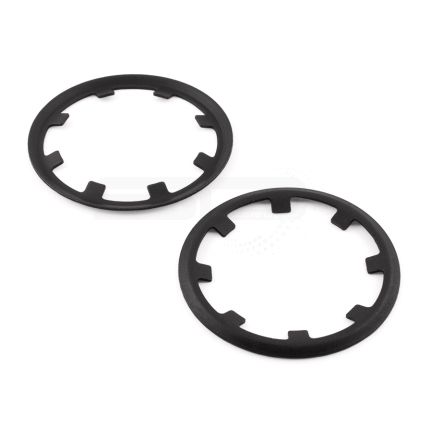

This ring features a curved outer rim with a series of prongs protruding into the centre. The ends create interference with the shaft when the ring is installed and a load introduced to the other side.

Shaft Diameter (Ds and Tol.) Thickness T Groove Dimensions (Dg and Tol.) Groove Dimensions (W Min) Edge Margin Y Inside Diameter (I.D.) Minimum Distance Number of Prongs Outside Diameter (O.D.) Thrust Load N
10 (+0.0/-0.09) 0.3 9.85 (-0.09) 0.6 1.5 9.75 3 6 16 320
