SR-EM-2805 Shaft Rings - SR-EM-2805-9

Product Code: SR-EM-2805-9

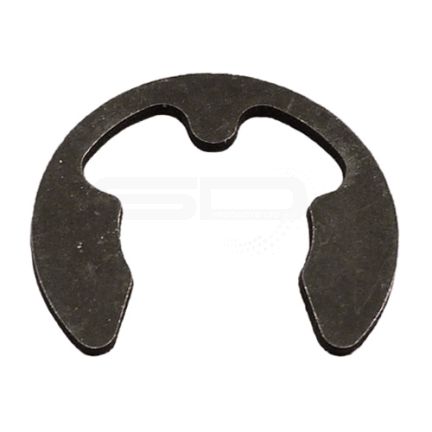

For illustration purposes only

Product Description

Radially Assembled, External ‘E’, JIS

Perhaps the most popular and widely used radial retaining ring is the “E” (so named because it is shaped like the letter “E”). Three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies.

For plated rings, add 0.05 to the listed maximum thickness. Maximum ring thickness will be a minimum of 0.005 less than the listed groove width (W) minimum.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity


*Telephone Number




*Are you human? Then what is 7 + 13 =

* Required Fields

  • Standard next day delivery - £6.90

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Shaft Dia. Ds mm (From-To) Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Thickness (T and Tol.) Ring Gap (A and Tol) Edge Margin (Y Min) Beam Width (E) Free Outside Dia. (G and Tol.)
10-14 9 (+0.09) 0.9 (+0.1) 9 (+0.15) 0.8 (±0.04) 7.8 (-0.35) 2 2 18 (±0.2)
