Product Code: SR-EM-2805-0.8
Radially Assembled, External ‘E’, JIS

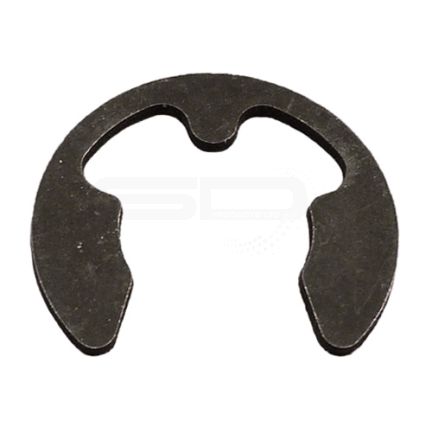

Perhaps the most popular and widely used radial retaining ring is the “E” (so named because it is shaped like the letter “E”). Three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies.
For plated rings, add 0.05 to the listed maximum thickness. Maximum ring thickness will be a minimum of 0.005 less than the listed groove width (W) minimum.
Standard next day delivery - £6.90
Next day delivery before noon - £24
Free delivery on all orders over £250
| Shaft Dia. Ds mm (From-To) | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Thickness (T and Tol.) | Ring Gap (A and Tol) | Edge Margin (Y Min) | Beam Width (E) | Free Outside Dia. (G and Tol.) |
|---|---|---|---|---|---|---|---|---|
| 1-1.4 | 0.8 (+0.05) | 0.3 (+0.05) | 0.8 (+0.08) | 0.2 (±0.02) | 0.7 (-0.25) | 0.4 | 0.3 | 2 (±0.1) |
