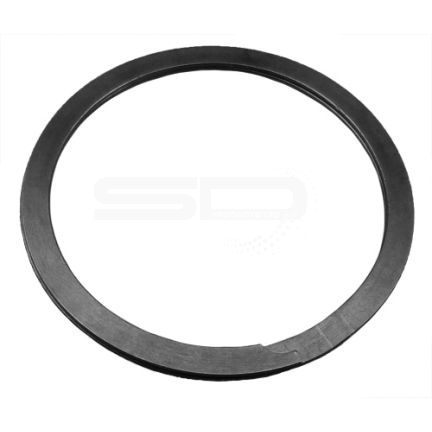

SHR-IMM Spiral Retaining Rings - SHR-IMM-140

Product Description

Internal, Medium Duty, Metric

These rings offer the greatest economy in price and size. They are able to handle high thrust capacity.

Shaft Dia. (mm) Ds Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3
140 143.9 (+0.0/-0.35) 2 (+0.13/-0.0) 144.87 (+1.14/-0.0) 6.35 (+0.1/-0.15) 1.83 (±0.1) 188501 233076
