SHR-IMH Spiral Retaining Rings - Metric - SHR-IMH-27-M

Product Code: SHR-IMH-27-M

simple_product

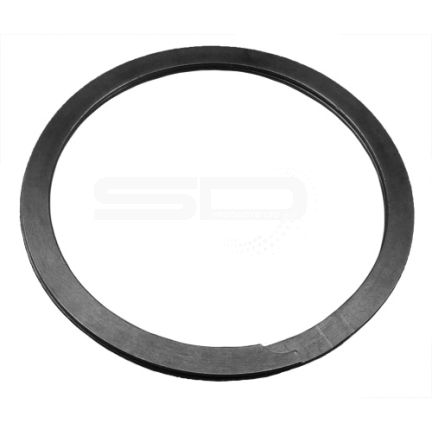

For illustration purposes only

Product Description

Internal, Heavy Duty, Metric

The greatest size range and thrust capacity make these rings the only choice for applications that require minimum deflection or thrust loads that demand a deep groove capacity.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 7 + 8 =

* Required Fields

Standard next day delivery - £6.90
Next day delivery before noon - £24
Free delivery on all orders over £250

Shaft Dia. (mm) Ds	Groove Dia. (Dg and Tol.)	Groove Width (W and Tol.)	Ring Free Dia. (Df and Tol.)	Ring Section (S and Tol.)	Ring Thickness (T and Tol.)	Thrust Load (lbs.) Groove Safety Factor of 2	Thrust Load (lbs.) Ring Safety Factor of 3
27	28.87 (±0.08)	1.4 (+0.1/-0.0)	29.11 (+0.35/-0.0)	2.62 (+0.08/-0.13)	1.27 (±0.05)	9571	31195
