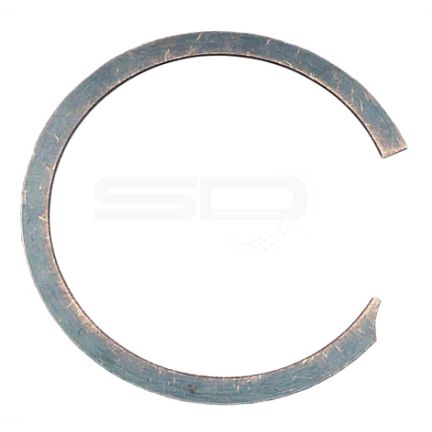

SHR-ILD Spiral Retaining Rings - SHR-ILD-600

Product Description

Internal, Light Duty

These single-turn retaining rings are ideal for light-duty applications, or where axial positioning is the primary function.

Shaft Dia. (In.) Ds Groove Depth (d) Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3
6 0.075 6.15 (±0.007) 0.067 (+0.003/-0.0) 6.212 (+0.045/-0.0) 0.265 (±0.005) 0.061 (±0.002) 31810 45990
