Product Code: SHR-HIS-975

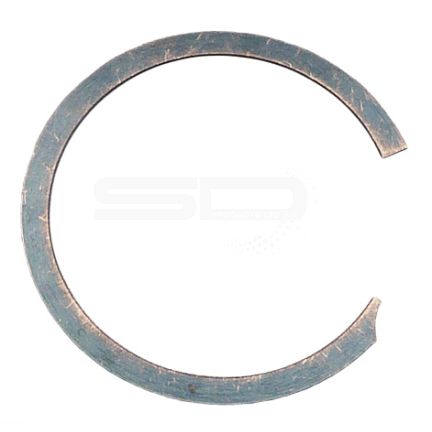

Internal, Heavy-Duty Snap Ring
These single-turn snap rings are ideal for applications involving high thrust loads.
Standard next day delivery - £6.90
Next day delivery before noon - £24
Free delivery on all orders over £250
|Shaft Dia. (In.) Ds||Groove Dia. (Dg and Tol.)||Groove Width (W and Tol.)||Ring Free Dia. (Df and Tol.)||Ring Section (S and Tol.)||Ring Thickness (T and Tol.)||Thrust Load (lbs.) Groove Safety Factor of 2||Thrust Load (lbs.) Ring Safety Factor of 3|
|9.75||9.986 (+0.031/-0.0)||0.203 (+0.007/-0.0)||10.083 (+0.07/-0.0)||0.373 (±0.006)||0.192 (±0.005)||81324||174199|
