Product Code: SHR-HIS-68

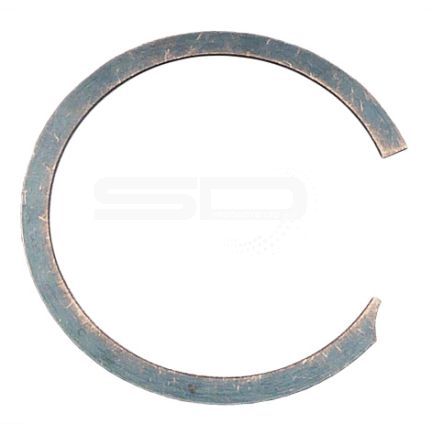

Internal, Heavy-Duty Snap Ring
These single-turn snap rings are ideal for applications involving high thrust loads.
Standard next day delivery - £6.90
Next day delivery before noon - £24
Free delivery on all orders over £250
|Shaft Dia. (In.) Ds||Groove Dia. (Dg and Tol.)||Groove Width (W and Tol.)||Ring Free Dia. (Df and Tol.)||Ring Section (S and Tol.)||Ring Thickness (T and Tol.)||Thrust Load (lbs.) Groove Safety Factor of 2||Thrust Load (lbs.) Ring Safety Factor of 3|
|0.687||0.719 (+0.004/-0.0)||0.043 (+0.006/-0.0)||0.726 (+0.013/-0.0)||0.065 (±0.004)||0.037 (±0.002)||777||3194|
