SHR-HIS Spiral Housing Rings - SHR-HIS-412

Product Description

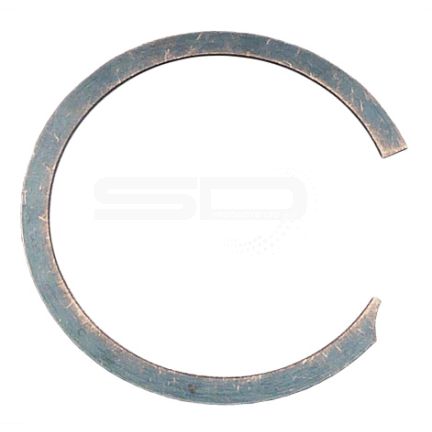

Internal, Heavy-Duty Snap Ring

These single-turn snap rings are ideal for applications involving high thrust loads.

Shaft Dia. (In.) Ds Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3
4.125 4.283 (+0.021/-0.0) 0.163 (+0.007/-0.0) 4.329 (+0.05/-0.0) 0.265 (±0.005) 0.153 (±0.004) 23035 62166
