SHR-HIS Spiral Housing Rings - SHR-HIS-343

Product Code: SHR-HIS-343

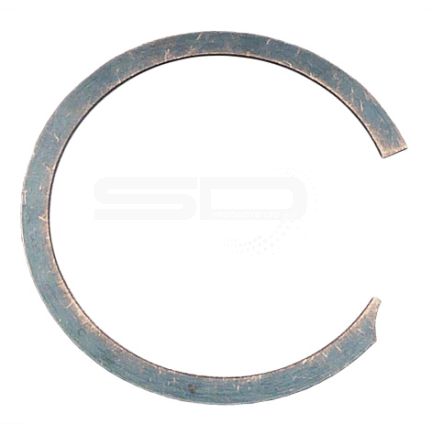

For illustration purposes only

Product Description

Internal, Heavy-Duty Snap Ring

These single-turn snap rings are ideal for applications involving high thrust loads.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity


*Telephone Number




*Are you human? Then what is 8 + 15 =

* Required Fields

  • Standard next day delivery - £6.90

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Shaft Dia. (In.) Ds Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3
3.437 3.575 (+0.013/-0.0) 0.124 (+0.007/-0.0) 3.609 (+0.035/-0.0) 0.248 (±0.005) 0.115 (±0.003) 16763 40422
