SHR-HIS Spiral Housing Rings - SHR-HIS-218

Product Code: SHR-HIS-218

simple_product

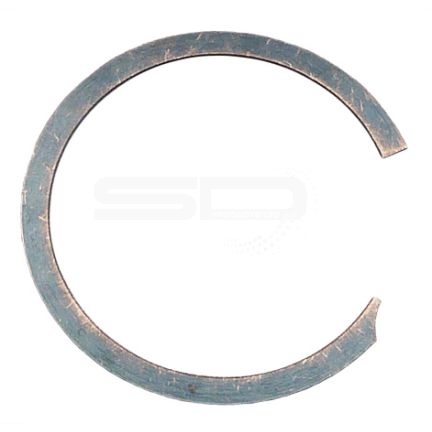

For illustration purposes only

Product Description

Internal, Heavy-Duty Snap Ring

These single-turn snap rings are ideal for applications involving high thrust loads.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 10 + 11 =

* Required Fields

Shaft Dia. (In.) Ds	Groove Dia. (Dg and Tol.)	Groove Width (W and Tol.)	Ring Free Dia. (Df and Tol.)	Ring Section (S and Tol.)	Ring Thickness (T and Tol.)	Thrust Load (lbs.) Groove Safety Factor of 2	Thrust Load (lbs.) Ring Safety Factor of 3
2.187	2.305 (+0.012/-0.0)	0.085 (+0.006/-0.0)	2.327 (+0.025/-0.0)	0.2 (±0.005)	0.076 (±0.003)	9121	18798
