Omega Clips
Product Description

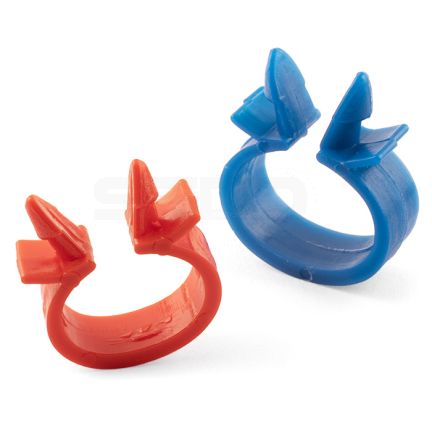

Removable holder for pipe and cables, also known as Routing Clips.
If the part you are looking for is not shown, please enquire to the sales office with the dimensions and the quantity. We stock a wide variety of different sizes, subject to availability.
| Product Code | Cable Diameter | Hole Size | Panel Thickness | A | B | C | Colours | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AP-OC-0260 | 4.8 | 5.3 | 5.5 - 1.5 | 15.2 | 6.7 | 8.1 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0160 | 5.6 | 7 | 1.9 | 15.2 | 9.5 | 5.5 | Black | £15.90 | 100 |
100
|
|
| AP-OC-0310 | 5.7 | 7 | 7.5 - 2.2 | 17.6 | 8.2 | 9.4 | White | £15.90 | 300 |
100
|
|
| AP-OC-0410 | 5.7 | 5.9 | 6 - 2.5 | 16.3 | 5.2 | 9.8 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0090 | 6 | 5.5 | 1.5 - 1.7 | 14.2 | 6.7 | 4.4 | Natural | £14.90 | 100 |
100
|
|
| AP-OC-0270 | 6 | 7 | 7 - 3 | 21.6 | 8.2 | 11.7 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0070 | 6.4 | 6.5 | 2 - 2.4 | 17.6 | 6 | 6.3 | Black | £14.90 | 100 |
100
|
|
| AP-OC-0010-BLK | 6.5 | 4.4 | 1.2 - 1.6 | 15 | 6.1 | 7.6 | Black | £16.20 | 494 |
100
|
|
| AP-OC-0390 | 6.7 | 6.3 | 6.7 - 2 | 16.4 | 9.8 | 8 | Natural | £15.90 | 600 |
100
|
|
| AP-OC-0370 | 7.2 | 7.7 | 7.8 - 1.5 | 18.5 | 7.7 x 5.6 | 7.7 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0380 | 7.2 | 6.7 | 6.5 - 1.7 | 18.1 | 9 | 8.8 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0420 | 7.2 | 7.3 | 7.5 - 1.7 | 19.5 | 6.6 | 10.5 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0360 | 7.4 x 5.2 | 6 | 6.5 - 1.5 | 14 | 5.4 | 5 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0300 | 7.5 | 7.3 | 7.8 - 1.5 | 18.8 | 6.9 x 3.5 | 8.8 | Light Beige | £15.90 | 300 |
100
|
|
| AP-OC-0430 | 7.5 | 7.3 | 7 - 1.7 | 19.3 | 7 | 9.4 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0120 | 8 | 5.2 | 1.4 - 1.6 | 14.5 | 6.8 | 4.6 | White | £18.10 | 100 |
100
|
|
| AP-OC-0440-BLK | 8 | 5.6 | 3.1 | 22.2 | 8.8 | 10.8 | Black | £15.90 | 500 |
100
|
|
| AP-OC-0140 | 8 | 5 | 2.3 - 2.6 | 18.1 | 6.1 | 6.2 | Grey | £14.90 | i |
100
|
Enquire Now |
| AP-OC-0250 | 8 | 7 | 6.5 - 1.8 | 18.9 | 7 | 6 | White | £15.90 | 300 |
100
|
|
| AP-OC-0340 | 8 | 7.6 | 7 - 1.2 | 18.7 | 7 | 7.1 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0280 | 8.8 | 6.8 | 7 - 2.5 | 24 | 8.3 | 11.7 | Black | £15.90 | 500 |
100
|
|
| AP-OC-0350 | 10 | 5 | 6.5 - 1.7 | 19.4 | 5.3 | 5.4 | Green | £15.90 | 300 |
100
|
|
| AP-OC-0100 | 11 | 4.8 | 2.8 - 3 | 18.7 | 6.2 | 5.8 | Green | £14.90 | 100 |
100
|
|
| AP-OC-0290 | 11.9 | 7.8 | 7 - 3 | 27.6 | 8.3 | 11.8 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0020 | 13 | 4.6 | 2.9 - 3.2 | 20.3 | 6.4 | 5.5 | Pink | £14.90 | 100 |
100
|
|
| AP-OC-0400 | 13 | 8 | 7 - 2.5 | 25 | 9.2 | 8.1 | Black | £15.90 | 200 |
100
|
|
| AP-OC-0030 | 14 | 4.7 | 3.1 - 3.5 | 23.2 | 6.4 | 7 | Blue | £15.90 | 100 |
100
|
|
| AP-OC-0110 | 14.5 | 4.9 | 2.8 - 3 | 24.5 | 5.8 | 6.8 | White | £14.90 | 100 |
100
|
|
| AP-OC-0320 | 15.5 | 7.3 | 6.5 - 2.5 | 30.6 | 8.8 | 11.3 | Black | £15.90 | 200 |
100
|
|
| AP-OC-0330 | 19.05 | 6.9 | 6.5 - 2.5 | 33.7 | 11.56 | 10.7 | Black | £15.90 | 300 |
100
|
|
| AP-OC-0130 | 24 | 5 | 2.8 - 3 | 30 | 6.7 | 6.7 | Yellow | £15.90 | 100 |
100
|
