Inverted Circlips - External - SR-EI-I-87

Product Code: SR-EI-I-87

simple_product

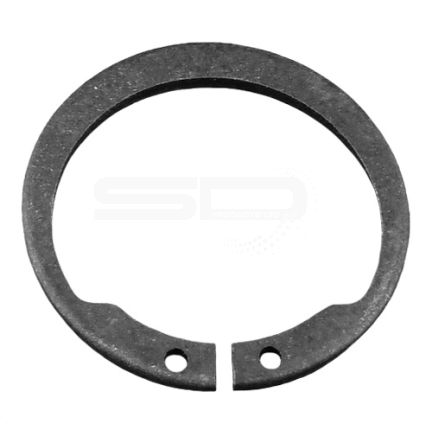

For illustration purposes only

Product Description

Axially Assembled, External Inverted

Functions like an SH ring on a shaft, only the lugs are “reversed.” This version reduces the distance the lugs of the standard SR-EI extend beyond the circumference of the shaft. The shaft can then be used in an application where clearance is minimal.

For plated rings, add 0.002” to the listed maximum thickness. Maximum ring thickness will be a minimum of 0.0002” less than the listed groove width (W) minimum.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 11 + 10 =

* Required Fields

  • Standard next day delivery - £6.90

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Shaft Dia. (mm) Ds Shaft Dia. (Ds DEC) Shaft Dia. (Ds FRACT) Groove Depth (d) Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Thickness (T and Tol.) Wt. Per 1000 pcs. Expanded Over Shaft (L1) Released In Groove (L2)
22.2 0.875 7/8 0.027 0.821 (±0.003) 0.046 (+0.003/-0.0) 0.81 (+0.005/0.01) 0.042 (±0.002) 3.8 1.15 1.1
