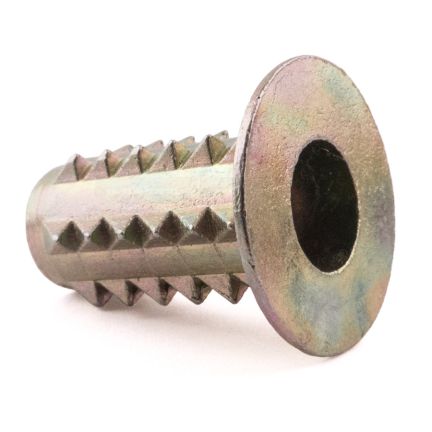

Insert Nuts - B Type - IB-5012-YZP
Product Description
B-Type Insert Nuts provide a strong permanent thread for wood. They are installed by simply knocking the insert into the material. The unique external thread ensures strong resistance against pull out.
Material
Zinc Alloy Die Cast
Finish
Zinc and Yellow / Zinc Plated
Specials
If the B-Type Insert that you are looking for is not shown, then please enquire to our sales office with the dimensions and the quantity. We stock a wide range of specials and can manufacture different sizes if required.
| Thread | Hole Size | D1 | D2 | D3 | H | L | L1 |
|---|---|---|---|---|---|---|---|
| M5 | 7.1 - 7.5 | 11.3 | 10.2 | 7.1 | 1.1 | 8.8 | 7.6 |
Special Price
£10.09
Regular Price
£10.09
- Buy 10 packs for £7.63 each and save 11%
- Buy 50 packs for £6.48 each and save 33%
Insert Nuts - B Type - IB-5012-YZP is available to buy in increments of 100
