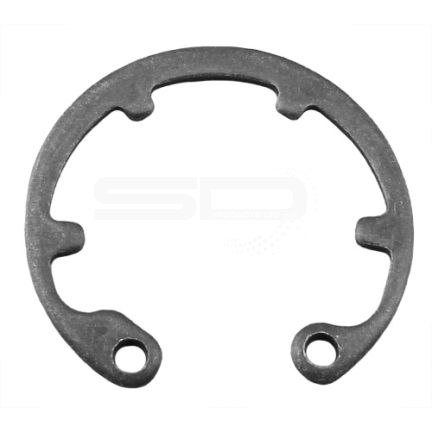

HR-ITM Housing Rings - HR-ITM-62

Product Code: HR-ITM-62

For illustration purposes only

Product Description

Axially Assembled, Internal Teeth, Metric

Similar in design to the HR-IM internal ring, this features several “teeth” equally distributed along the circumference of the ring. The increased shoulder offered by the teeth is particularly effective in retaining applications with large radii or chamfers.

For plated rings, add 0.05 to the listed maximum thickness. Maximum ring thickness will be a minimum of 0.005 less than the listed groove width (W) minimum.
