Product Code: HR-ITM-140
Axially Assembled, Internal Teeth, Metric

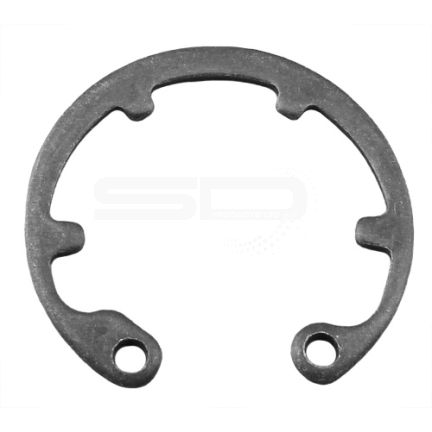

Similar in design to the HR-IM internal ring, this features several “teeth” equally distributed along the circumference of the ring. The increased shoulder offered by the teeth is particularly effective in retaining applications with large radii or chamfers.
For plated rings, add 0.05 to the listed maximum thickness. Maximum ring thickness will be a minimum of 0.005 less than the listed groove width (W) minimum.
Standard next day delivery - £6.90
Next day delivery before noon - £24
Free delivery on all orders over £250
| Housing Dia. (Dh) | Groove Depth (d) | Groove Dia. (Dg and Tol.) | Ring Thickness (T and Tol.) | Groove Width (W Min) | Ring Free Diameter (Df and Tol) | Edge Margin (Y Min) | Thrust Load Ring (Pr kN) | Thrust Load Groove (Pg kN) | R/Ch Max | Max Load w/R/Ch Max. (P'r kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| 140 | 2 | 144 (+0.63) | 4 (-0.1) | 4.15 | 148 (+1.5/-0.63) | 6 | 350 | 148 | 3 | 66.5 |
