Product Code: SR-EM-RE-SL-8
Radially Assembled, External Reinforced ‘E’, ANSI Metric

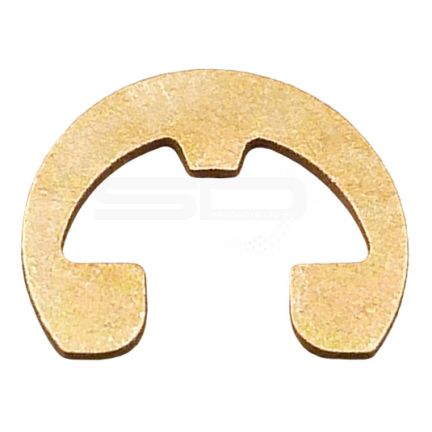

The SR-EM-RE-SL retaining ring is a reinforced version of the SR-EM-E ring, which will accommodate higher thrust loadings and RPM. SR-EM-RE-SL rings function in the same size grooves as regular E rings, so that you can change from one to the other without re-engineering the application.
*F.I.M. (Full Indicator Movement) – Maximum allowable deviation of concentricity between groove and shaft.
For plated rings, add 0.05 to the listed maximum thickness. Maximum thickness will be a minimum of 0.005 less than the listed groove width (W) minimum.
Standard next day delivery - £6.90
Next day delivery before noon - £24
Free delivery on all orders over £250
|Shaft Dia. (mm) Ds||Shaft Dia. (Ds DEC)||Groove Depth (d)||Groove Dia. (Dg and Tol.)||Groove Width (W and Tol.)||Ring Free Dia. (Df and Tol.)||Ring Thickness (T and Tol.)||Free O.D. (G Ref)||Groove Dia. (F.I.M.*)||Wt. Per 1000 pcs.||Released In Groove (L2)|
|8||0.315||0.8||6.4 (-0.15)||0.7 (+0.15)||6.15 (±0.08)||0.6 (±0.06)||14.95||0.08||0.36||15.6|
