E Clips - Reinforced - SR-EI-RE-43

Product Description

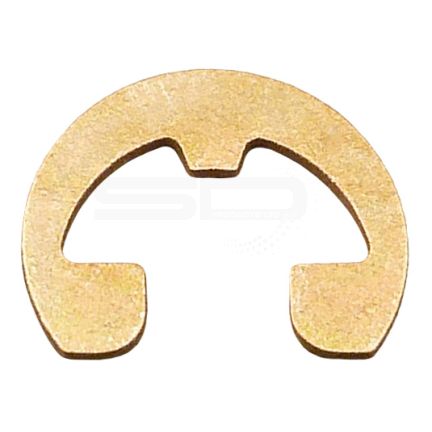

Radially Assembled, External Reinforced ‘E’

The SR-EI-RE retaining ring is a reinforced version of the E ring, which will accommodate higher thrust loadings and RPM. SR-EI-RE rings function in the same groove as regular E rings, so that you can change from one to the other without re-engineering the application.

For plated rings, add 0.002” to the listed maximum thickness. Maximum thickness will be a minimum of 0.0002” less than the listed groove width (W) minimum.

Shaft Dia. (mm) Ds Shaft Dia. (Ds DEC) Shaft Dia. (Ds FRACT) Groove Depth (d) Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Thickness (T and Tol.) Free O.D. (G Ref) Installed in Groove (L2 Max) Wt. Per 1000 pcs.
11.1 0.438 7/16 0.047 0.343 (±0.003) 0.039 (+0.003/-0.0) 0.332 (±0.004) 0.035 (±0.002) 0.746 0.77 1.9
