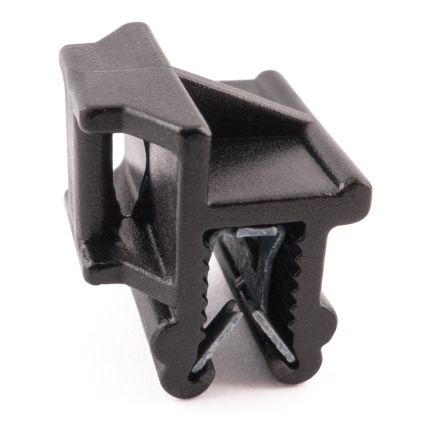

Clip and Clamp For Cable Strap
Product Description
Quick and easy to assemble, these clips can be combined with different cable strips.
If the part you are looking for is not shown, please enquire to the sales office with the dimensions and the quantity. We stock a wide variety of different sizes, subject to availability.
Clip
| Product Code | Hole Size | Panel Thickness | B | Form | A | C | No. of Packs |
|---|---|---|---|---|---|---|---|
| CTF-1-0010 | 6.5 | 0.8 - 10 | 5 | 1 | - | - | Enquire Now |
| CTF-1-0020 | 6.3 - 7 | 0.7 - 3 | 6 | 1 | 7.8 | 2 | Enquire Now |
| CTF-1-0030 | 6.3 - 7 | 0.7 - 6 | 6 | 1 | 11.4 | 2 | Enquire Now |
| CTF-5-0040 | - | 0.7 - 3 | 6.5 | 5 | 10 | 2 | Enquire Now |
| CTF-5-0050 | - | 3 - 6 | 6.5 | 5 | 13.2 | 2 | Enquire Now |
| CTF-6-0060 | - | 0.7 - 3 | 6.5 | 6 | 10 | 2 | Enquire Now |
| CTF-2-0070 | 6.5 | 2.5 - 2.6 | 6.6 | 2 | - | - | Enquire Now |
| CTF-3-0080 | 11.1 | 4.5 - 6 | 9.2 | 3 | - | - | Enquire Now |
| CTF-4-0090 | 7.1 | 0.5 - 4 | 9.5 | 4 | - | - | Enquire Now |
Clamp
| Product Code | Panel Thickness | B | Form | A | C | D | No. of Packs |
|---|---|---|---|---|---|---|---|
| CTFM-9-0010 | 0.9 - 1.1 | 5 | 9 | 15.7 | 2.3 - 2.7 | 16 | Enquire Now |
| CTFM-10-0020 | 0.8 - 1.2 | 5 | 10 | 15.7 | - | 16 | Enquire Now |
| CTFM-7-0030 | 1 - 3 | 5 | 7 | 15.3 | - | 13 | Enquire Now |
| CTFM-9-0040 | 1.5 - 4 | 5 | 9 | 14.2 | - | 15 | Enquire Now |
| CTFM-8-0050 | 1.5 - 4.5 | 5.8 | 8 | 17.8 | - | 25 | Enquire Now |
