Castors – 3477UAR
Product Description

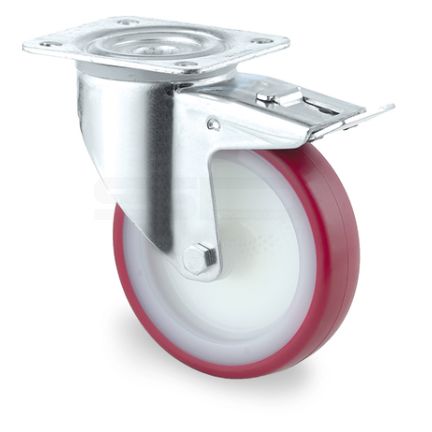

Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting.
Material
Wheel centre made of polyamide, tread: polyurethane, roller bearing.
| Product Code | Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3477UAR080P62-RED | 100kg | 200kg | 105 x 85mm | 80mm | 32mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3477UAR100P62-RED | 150kg | 300kg | 105 x 85mm | 100mm | 32mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3477UAR125P62-RED | 200kg | 400kg | 105 x 85mm | 125mm | 32mm | 9mm | 80/77 x 60mm | Enquire Now |
| 3477UAR125P63-RED | 300kg | 600kg | 137 x 105mm | 125mm | 40mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3477UAR160P63-RED | 350kg | 700kg | 137 x 105mm | 160mm | 40mm | 11mm | 105 x 80/75mm | Enquire Now |
| 3477UAR200P63-RED | 350kg | 700kg | 137 x 105mm | 200mm | 46mm | 11mm | 105 x 80/75mm | Enquire Now |
