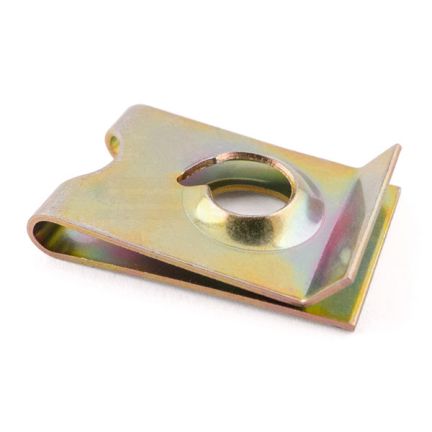

Captive U Nuts

Product Description

Captive Nuts push onto edges of panels and provide a strong and secure fixing for applications where two or more panels require holding together.

Material
CS60-CS70 Carbon Steel, Hardened and Tempered

Finish
Blue/Black, Electro plated Zinc. Different finishes available on request.

Specials
If the Captive Nut you are looking for is not shown then please contact the sales office with the dimensions and quantity. We stock a wide variety of specials and we can manufacture different sizes if required.

Product Code Screw Size Panel Range A B C H T Finish Pricei Stock Pack Sizei No. of Packs
AP-MN-0690 NO 3 1.4 - 1.3 10 8.1 9.5 4.4 0.9 Silver £6.99 100
100
+
-
NU-1812-00 NO 4 0.71 - 1.22 11.2 7.9 4.77 4.77 0.51 Self-coloured £6.99 99700
100
+
-
NU-1812-BZP NO 4 0.71 - 1.22 11.2 7.9 4.77 4.77 0.51 Zinc plated £6.99 i
100
Enquire Now
AP-MN-0370 NO 5 0.4 - 1.6 23.9 11.1 15.6 6 0.6 Zinc blue £10.00 i
100
Enquire Now
AP-MN-0760-YZP NO 6 0.4 - 2.0 16.6 11 7.9 4.9 0.5 Yellow zinc £7.49 300
100
+
-
AP-MN-0720-YZP NO 6 0.4 - 2.2 25 11 - 6.5 0.6 Yellow zinc £7.49 300
100
+
-
AP-MN-0770-YZP NO 6 0.5 - 2.2 17.2 11 8.8 4.6 0.5 Yellow zinc £7.49 300
100
+
-
AP-MN-0710-YZP NO 6 0.6 - 2.1 17.2 11.1 8.9 4.6 0.5 Yellow zinc £7.49 300
100
+
-
NU-1219-00 NO 6 0.71 - 1.63 16.5 11.2 6.73 5.94 0.56 Self-coloured £6.99 58
100
+
-
NU-1219-BZP NO 6 0.71 - 1.63 16.5 11.2 6.73 5.94 0.56 Zinc plated £6.99 168168
100
+
-
NU-1219-40 NO 6 0.71 - 1.63 16.5 11.2 6.73 5.94 0.56 Yellow zinc £6.99 106213
100
+
-
NU-2811-00 NO 6 0.91 - 1.22 11.7 7.9 5.54 5.21 0.56 Self-coloured £6.99 73401
100
+
-
NU-2811-BZP NO 6 0.91 - 1.22 11.7 7.9 5.54 5.21 0.56 Zinc plated £6.99 161197
100
+
-
NU-2811-40 NO 6 0.91 - 1.22 11.7 7.9 5.54 5.21 0.56 Yellow zinc £6.99 132800
100
+
-
AP-MN-0700-SIL NO 6 1.0 - 2.5 19.6 12.7 9.6 5.5 0.6 Silver £7.49 300
100
+
-
AP-MN-0670 NO 6 1.4 - 2.6 14.9 12 7.8 5.5 0.6 Silver £6.99 300
100
+
-
AP-MN-0740-BZP NO 6 1.4 - 3.2 16.8 11 8.9 5.1 0.5 Zinc plated £7.49 300
100
+
-
NU-90010 NO 6 2 - 2.75 12.5 11 5.8 6.8 0.5 - i i - Enquire Now
NU-2954-BLK NO 6 2.1 - 2.2 16.7 11.2 6.8 4.1 0.57 Black £11.60 11406
100
+
-
NU-2954-BZP NO 6 2.1 - 2.2 16.7 11.2 6.8 4.1 0.57 Zinc plated £6.99 53234
100
+
-
NU-90040 NO 6 3 - 4 15.5 11 6.5 6 0.5 - i i - Enquire Now
NU-90050 NO 6 3.75 - 5.2 12 11 5 5 0.5 - i i - Enquire Now
AP-MN-0400 NO 7 0.4 - 3 21.6 16.2 9.5 6.6 0.8 Zinc black £10.00 300
100
+
-
NU-90060 NO 7 1 - 3 16 11 7 7.2 0.5 - i i - Enquire Now
AP-MN-0470 NO 7 2.2 - 3.6 18.8 14.6 10.3 5.8 0.6 Zinc plated £12.00 102
100
+
-
AP-MN-0590 NO 7 - 8 1.5 - 1.9 17.1 11 8.3 5.6 0.5 Self-coloured £10.00 300
100
+
-
NU-1116-BZP NO 8 0.4 - 1.6 12.2 7.9 6.5 6 0.5 Zinc plated £10.00 22806
100
+
-
AP-MN-0750-YZP NO 8 / M4 0.4 - 2.8 17.6 12 9.6 5.4 0.4 Yellow zinc £7.49 300
100
+
-
NU-90090 NO 8 0.5 - 1.5 13 11 6 6.8 0.5 - i i - Enquire Now
NU-90080 NO 8 0.5 - 4.5 20 15 10.5 6 0.6 - i i - Enquire Now
NU-1864-BZP NO 8 0.56 - 1.02 14 12.7 5.54 7.14 0.61 Zinc plated £11.00 76819
100
+
-
NU-3248-90 NO 8 0.71 - 1.02 16.8 11.2 7.14 7.14 0.61 Black £6.99 80960
100
+
-
NU-1561-BZP NO 8 0.71 - 1.63 24.4 11.2 14.3 7.14 0.61 Zinc plated £10.00 70904
100
+
-
NU-0536-BZP NO 8 0.71 - 1.63 16.5 11.2 6.73 7.14 0.61 Zinc plated £6.99 346718
100
+
-
NU-0536-40 NO 8 0.71 - 1.63 16.5 11.2 6.73 7.14 0.61 Yellow zinc £6.99 15582
100
+
-
NU-3106-00 NO 8 0.81 - 1.78 15.2 14.2 7.92 6.35 0.61 Self-coloured £6.99 61825
100
+
-
NU-3106-40 NO 8 0.81 - 1.78 15.2 14.2 7.92 6.35 0.61 Yellow zinc £6.99 47800
100
+
-
NU-90110 NO 8 1 - 2.5 12.6 8 5.5 5 0.6 - i i - Enquire Now
NU-1675-90 NO 8 1.22 - 1.63 10.4 8.6 4.37 6.6 0.51 - £10.00 22072
100
+
-
NU-1675-40 NO 8 1.22 - 1.63 10.4 8.6 4.37 6.6 0.51 Yellow zinc £10.00 38258
100
+
-
NU-90140 NO 8 1.25 - 2 20.7 13 10.8 8 0.7 - i i - Enquire Now
NU-1264-40 NO 8 1.3 - 2.1 20.45 12.76 10.3 6.1 0.76 Yellow zinc £10.00 49000
100
+
-
NU-90160 NO 8 1.75 - 2.25 19.1 16 11 6 0.6 - i i - Enquire Now
NU-90130 NO 8 2 - 3 13.8 13 6.8 6 0.5 - i i - Enquire Now
NU-90180 NO 8 2 - 3.5 16 12 8 6.5 0.5 - i i - Enquire Now
NU-2569-40 NO 8 2.03 - 2.79 16.3 11.2 6.73 7.14 0.61 Yellow zinc £7.49 73970
100
+
-
AP-NJ-9050-YZP NO 10 0.4 - 1.3 24.6 14.5 - 5.5 0.5 Yellow zinc £10.00 300
100
+
-
AP-MN-0730-YZP NO 10 0.4 - 2.7 25.3 16 12.2 7 0.5 Yellow zinc £10.00 200
100
+
-
NU-90190 NO 10 0.5 - 1.7 24.9 11 16 7.2 0.5 - i i - Enquire Now
NU-12373-DAC NO 10 0.5 - 2.2 21.5 15.9 10 5.6 0.76 Silver Dacromet £11.00 580
100
+
-
NU-9210-40 NO 10 0.5 - 4 20.4 14.1 8 6 0.64 Yellow zinc £11.00 3420
100
+
-
NU-90200-BZP NO 10 0.5 - 4.5 21 15 10.5 6 0.6 - £11.50 i
100
Enquire Now
NU-0537-BZP NO 10 0.91 - 2.03 19.8 12.7 7.92 7.92 0.71 Zinc plated £7.49 i
100
Enquire Now
NU-0537-00 NO 10 0.91 - 2.03 19.8 12.7 7.92 7.92 0.71 Self-coloured £7.49 59462
100
+
-
NU-0537-40 NO 10 0.91 - 2.03 19.8 12.7 7.92 7.92 0.71 Yellow zinc £7.49 72658
100
+
-
NU-90220 NO 10 1 - 3 19.5 12.5 9 6 0.5 - i i - Enquire Now
NU-90230 NO 10 1.5 - 2 25 20.5 14 6 0.5 - i i - Enquire Now
NU-90240 NO 10 1.7 - 2.3 16.6 11 7.2 7.2 0.6 - i i - Enquire Now
NU-90250 NO 10 2 - 3 16 11 6.75 7.2 0.5 - i i - Enquire Now
NU-90260-ZINC NO 10 2 - 3.5 15 12 7 6 0.7 Zinc £11.50 i
100
Enquire Now
NU-90270 NO 10 3 - 4 15.5 11 6 6.2 0.5 - i i - Enquire Now
NU-3489-40 NO 10 3.17 - 3.42 19.6 12.7 7.92 7.92 0.71 Yellow zinc £6.99 85209
100
+
-
NU-0538-40 NO 12 0.91 - 2.64 26.2 15 11.1 9.91 0.81 Yellow zinc £12.50 14413
100
+
-
NU-1866-BZP NO 12 0.91 - 2.64 29.7 15 14.3 7.14 0.81 Zinc Plated £13.50 69350
100
+
-
NU-90280 NO 12 3 - 4 23.7 16 12 8.7 0.7 - i i - Enquire Now
NU-3799-BZP NO 14 0.71 - 1.98 25.1 15 12.7 9 0.81 Zinc plated £13.50 24001
100
+
-
NU-3500-BZP NO 14 0.9 - 2.6 21 14 12 9 0.7 Zinc Plated £7.49 20441
100
+
-
NUS-15195-SC NO 14 3.5 - 4.9 18.2 16 9.6 7.7 0.67 Phosphate and Oil £12.50 4000
100
+
-
AP-MN-0680-BLK M3 0.4 - 1.6 20.6 13.2 10.5 8 0.7 Black £10.00 300
100
+
-
AP-MN-1100 M4 0.4 - 1.6 15.8 14.9 8.2 5.6 0.7 - £6.99 300
100
+
-
AP-MN-0780-YZP M4 0.4 - 1.9 17.7 11.1 9.1 5.7 0.4 Yellow zinc £6.99 300
100
+
-
AP-MN-0660-BLK M4 0.4 - 2.3 24.1 10.8 16.6 7 0.3 Black £10.00 300
100
+
-
AP-MN-0650-BLK M4 0.4 - 4.0 19.5 12.7 9.7 6.9 0.6 Black £10.00 300
100
+
-
NU-90290 M4 0.5 - 1.5 13 11 6 6.5 0.5 - i i - Enquire Now
NU-1218-Z-P M4 0.71 - 1.62 16.5 11.2 6.73 5.97 0.41 Zinc plated £6.99 42500
100
+
-
NU-90300 M4 1.5 - 2 12.75 11 6 6.5 0.5 - i i - Enquire Now
AP-MN-0320 M4 2.3 - 2.7 18.9 16.1 - 5.9 0.6 - £6.99 300
100
+
-
AP-MN-0310 M4 2.6 - 2.8 18.5 11.9 - 6 1 - £6.99 300
100
+
-
NU-3634-BZP M5 0.79 - 1.73 17.5 11.9 8 8 0.46 Zinc plated £12.50 81580
100
+
-
NU-3634-40 M5 0.79 - 1.73 17.5 11.9 8 8 0.46 Yellow zinc £13.00 4772
100
+
-
AP-MN-0830-BLK M5 2.6 - 3.6 18 12 6.8 7.6 1 Black £6.99 300
100
+
-
NU-3682-BZP M6 0.91 - 2.46 21.1 14 10.2 10 0.56 Zinc plated £7.49 i
100
Enquire Now
NU-3682-00 M6 0.91 - 2.46 21.1 14 10.2 10 0.56 Self-coloured £7.49 i
100
Enquire Now
NU-3682-40 M6 0.91 - 2.46 21.1 14 10.2 10 0.56 Yellow zinc £7.49 120979
100
+
-
