Front Fixing Cage Nut / Lock
Product Description

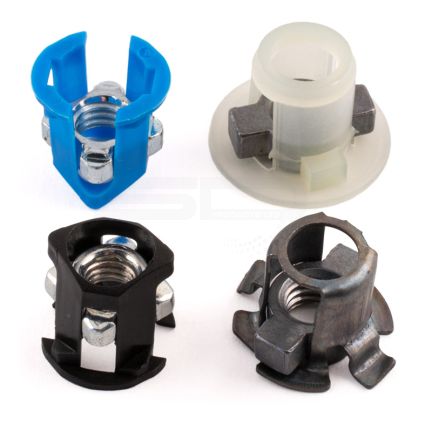

Our Front Mounting Cage Nuts are perfect for use in server racks, network cabinets and various electrical enclosures, providing a secure fixing point for panels, shelves, brackets and other rack mounted components.
Ideal for jobs where rear access cage nuts can not be used. The cage nut is pushed into the mounting hole and secured by 1/4 or 1/8 turn to lock into position. The metal threaded insert then provides a strong fixing point for mounting equipment.
| Product Code | Thread | Panel Range | Type | Cage | Hole Type | F | G | H | I | X | Y | Z | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CGN6-0010 | M6 | 0.5 - 3.7 | A | Metal | T | 17 | 17 | 10.5 | 0.5 | 4.5 | 14.6 | 10.3 | i | i | - | Enquire Now |
| CGN6-0020 | M6 | 0.5 - 3.6 | B | Polyamide | S | 22.6 | 15.2 | 11.8 | 0.8 | - | 18.2 | 11.2 | £10.31 | 498 |
25
|
|
| CGN6-0030 | M6 | 0.5 - 2.5 | C1 | Polyamide | T | 18 | 18 | 12 | 0.8 | 4.5 | 15 | 10.5 | i | i | - | Enquire Now |
| CGN6-0040 | M6 | 0.5 - 3.3 | C2 | Polyamide | T | 21.5 | 21.5 | 16 | 1.5 | 5.5 | 18 | 12 | i | i | - | Enquire Now |
| CGN6-0050 | M5 | 0.5 - 3 | D(p) | Polyamide | S | 11.6 | 12.3 | 12.8 | - | - | 9.5 | 9.3 | i | i | - | Enquire Now |
| CGN6-0060 | M6 | 0.5 - 3 | D(p) | Polyamide | S | 11.6 | 12.3 | 12.8 | - | - | 9.5 | 9.3 | £10.00 | 1198 |
25
|
|
| CGN6-0070 | M5 | 0.5 - 3 | D(p) | Polyamide | S | 11.6 | 12.3 | 12.8 | - | - | 9.5 | 9.3 | i | i | - | Enquire Now |
| CGN6-0080 | M6 | 0.5 - 3 | D(p) | Polyamide | S | 11.6 | 12.3 | 12.8 | - | - | 9.5 | 9.3 | i | i | - | Enquire Now |
| CGN6-0090 | M5 | 0.5 - 2.8 | D(m) | Metal | S | 9.3 | 11.9 | 13.7 | - | - | 9.5 | 9.3 | i | i | - | Enquire Now |
| CGN6-0100 | M6 | 0.5 - 2.8 | D(m) | Metal | S | 9.3 | 11.9 | 13.7 | - | - | 9.5 | 9.3 | i | i | - | Enquire Now |
