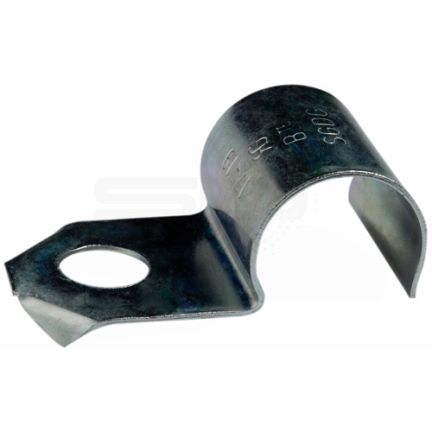

Cable Clips Screw Fixed - P shape
Product Description
Designed to fix one tube to a panel. The clip can be positioned anywhere on soft panels, like wood, as anti-rotation tab penetrate material whilst screwing. Ideal for use on the sides or corners of hard metal panels (for anti-rotation tabs). Also available with a push on stud system instead of a hole.
| Product Code | Tube Ø | Hole Diameter | Distance 2 (ax) | Distance (e) | Height (h) | Length x Width (lxb) | Material Thickness (s) | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| CCSF-0010 | 7 | 5.5 | 12 | 15 | 7.5 | 33.4 x 20 | 0.6 | Enquire Now |
| CCSF-0020 | 12 - 13 | 5.5 | 12 | 15.2 | 9.5 | 35 x 20 | 0.6 | Enquire Now |
| CCSF-0030 | 14 - 16 | 6.5 | 12 | 16 | 12.1 | 37.5 x 20 | 0.6 | Enquire Now |
| CCSF-0040 | 16 | 8.5 | 9.2 | 19.5 | 15.9 | 60 x 20 | 0.6 | Enquire Now |
