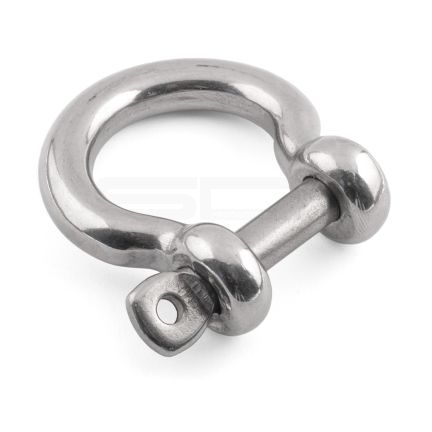

Bow Shackle with Captive Pin - 316 / A4 Stainless Steel
Product Description
Bow shackles with a locking pin for extra security in lifting, rigging and marine applications. Rounded design allows for multi directional load handling.
Material
316 / A4 Stainless Steel
| Product Code | A | D | L | R | Min. Breaking Load | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| BOW-SHACKLE-CAPTIVE-PIN-A4-4 | 8 | 4 | 16 | 14 | 5.2 kN | £5.00 | i |
5
|
Enquire Now |
| BOW-SHACKLE-CAPTIVE-PIN-A4-5 | 10 | 5 | 20 | 17 | 8.2 kN | £5.70 | 200 |
5
|
|
| BOW-SHACKLE-CAPTIVE-PIN-A4-6 | 12 | 6 | 24 | 21 | 11.9 kN | £6.42 | 200 |
5
|
|
| BOW-SHACKLE-CAPTIVE-PIN-A4-8 | 16 | 8 | 32 | 28 | 21.3 kN | £5.73 | 200 |
3
|
|
| BOW-SHACKLE-CAPTIVE-PIN-A4-10 | 20 | 10 | 40 | 35 | 33.6 kN | £7.13 | 120 |
2
|
|
| BOW-SHACKLE-CAPTIVE-PIN-A4-12 | 24 | 12 | 48 | 42 | 49.4 kN | £5.00 | 60 |
1
|
