9688FTP200P63-WT50
Product Description

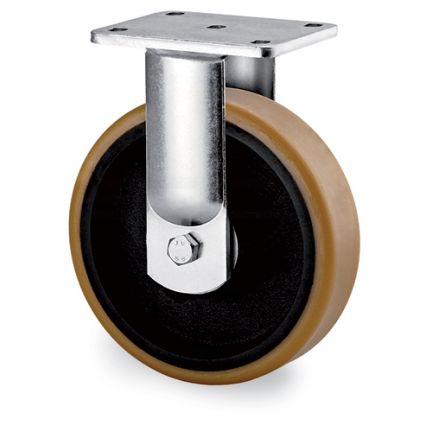

Fixed castor, fork and plate steel welded, bright zinc plated, blue passivated, wheel axle with nut, plate fitting.
Material
Wheel centre made of cast iron, tread: polyurethane, casted, precision ball bearing.
Load Capacity | Load Capacity (static) | Plate Size | Wheel Diameter | Width of Tread | Plate Hole | Plate Hole Centres |
---|---|---|---|---|---|---|
1000kg | 2000kg | 135 x 110mm | 200mm | 50mm | 11mm | 105 x 80/75mm |
