3213 Rated voltage – 36V

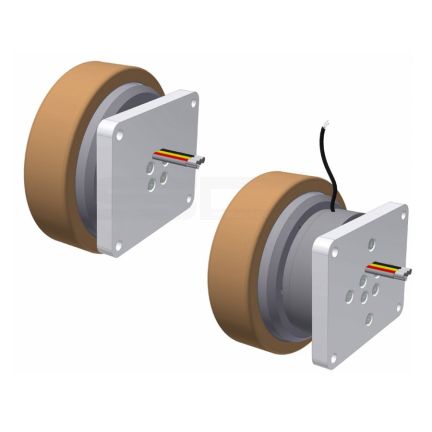

Product Description
The gearless external rotor motor guarantees smooth running and cuts an impressive figure with its small size. The high-torque external rotor motor is fully integrated into the hub. The Vulkollan coating is suitable for heavy-duty applications.
Special features
The drive has a very small overall depth, allowing users a tremendous amount of creative freedom when designing the layout of vehicles.
Customer specific
The wheel drive is available with or without a brake. The flange plate can be individually adapted to suit your requirements. It is possible to customize the drive.
Rated voltage | Rated current | Rated torque | Rated speed | Rated power (output) | Max. efficiency | Starting torque | Coating of tyres | Max. radial axle load Fr | Max. axial axle load Fa | Weight |
---|---|---|---|---|---|---|---|---|---|---|
36 V | 14 A | 6 Nm | 700 rpm | 450 W | 90% | 18 Nm | Vulkollan 93° Shore A | 2500 N | 800 N | 5.7 Kg |
