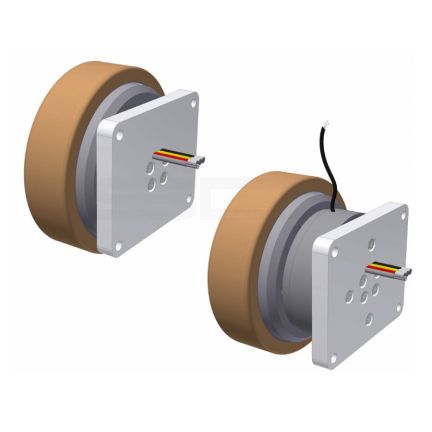

3213 Rated voltage – 24V

Product Description

The gearless external rotor motor guarantees smooth running and cuts an impressive figure with its small size. The high-torque external rotor motor is fully integrated into the hub. The Vulkollan coating is suitable for heavy-duty applications.

Special features
The drive has a very small overall depth, allowing users a tremendous amount of creative freedom when designing the layout of vehicles.

Customer specific
The wheel drive is available with or without a brake. The flange plate can be individually adapted to suit your requirements. It is possible to customize the drive.

Ketterer logo

Rated voltage Rated current Rated torque Rated speed Rated power (output) Max. efficiency Starting torque Coating of tyres Max. radial axle load Fr Max. axial axle load Fa Weight
24 V 14 A 6 Nm 460 rpm 290 W 94% 18 Nm Vulkollan 93° Shore A 2500 N 800 N 5.7 Kg
