3207.48-0020 Rated voltage – 48V

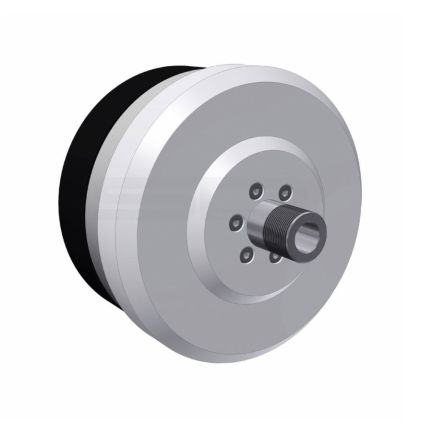

The 32-pole BLDC outrunner motor with its compact design is perfectly suited for a direct drive. It can achieve torques of up to 13 Nm, even in continuous operation.

Special features
The motor has an WT-MEC12B encoder system with 4.096 steps, which enables a resolution of 0.1 degrees. The motor is mounted on the rear side. The motor cone is extended by a motor shaft which rotates at the same time. The force can be transferred through this shaft, or can occur through the connection to the motor cone.

Customer specific
The motors are also available with different windings and interconnections upon request. This allows for an optimized design of the motor for a specific operating point in your application.
