3206.00-0001

Product Description

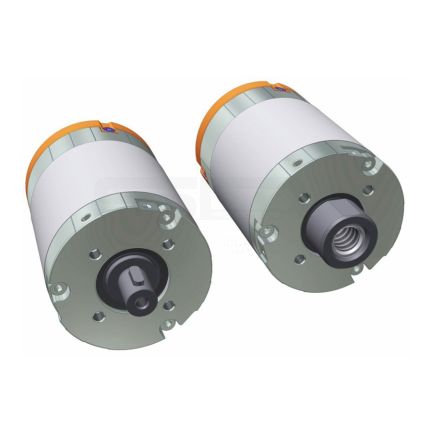

14-pol BLDC engine with high-performance neodymium magnets, also equipped with two analog hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system, while additional power electronics are required to operate the motor.

Special features
The engine is designed for high torque and is characterized by its excellent overload resistance. Optimal as a direct-drive system or a generator for gearless applications. The motor axis is alternatively designed as a hollow shaft or as a normal motor shaft. Type 0002 is equipped with a Tr14x3 RH nut, which allows a spindle to be guided linearly through the motor.

Customer specific
Engines can be manufactured with other windings on request. A precise design and production of the engine at a given operating point is also possible.

Voltage range Rated voltage Rated current Rated torque Rated speed Rated power (output) Max. efficiency Idle speed Starting torque Spindle nut Infeed of the nominal point Feed force
12 V to 48 V 36 V 4.5 A 1.5 Nm 900 rpm 140 W 89% 1050 rpm 6.2 Nm Tr14x3 RH 45 mm/sec. 1000 N
