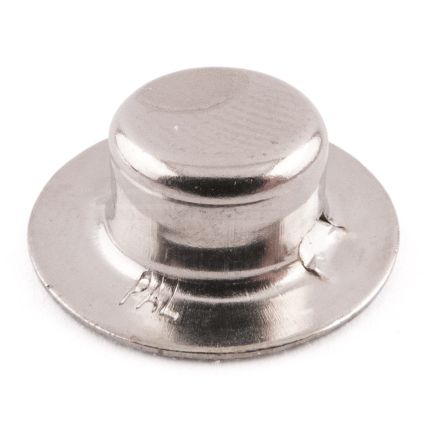

Tophat Retainers
Product Description
Tophat Retainers cover the ends of rods and studs with a neat, smooth appearance. They are quickly assembled by simply pushing on by hand.
Material
Austempered Carbon Steel
Finish
Nickel/Zinc Plated
Specials
If the Tophat Retainers that you are looking for are not shown, please enquire to our sales office. We have a wide range of imperial sizes and different finishes.
*Extra Measurements
F1 = Maximum Push on Force in Newtons.
F2 = Minimum Holding Strength in Newtons.
Metric
| Product Code | Stud | D | F1 | F2 | H | Finish | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| PW-050011-NOE | 5 | 12 | 134 | 979 | 5.3 | Nickel Plated | i | i | - | Enquire Now |
| PW-050013-NOE | 5 | 13 | 134 | 979 | 5.3 | Nickel Plated | i | i | - | Enquire Now |
| PW-080016-NOE | 8 | 16 | 401 | 2047 | 6 | Nickel Plated | i | i | - | Enquire Now |
| PW-100019-NOE | 10 | 19 | 401 | 3115 | 6.9 | Nickel Plated | i | i | - | Enquire Now |
| PW-100019-ZP | 10 | 19 | 401 | 3115 | 6.9 | Zinc Plated | £10.50 | i |
50
|
Enquire Now |
| PW-120022-NOE | 12 | 22 | 668 | 4727 | 8.3 | Nickel Plated | i | i | - | Enquire Now |
Imperial
| Product Code | Stud | D | F1 | F2 | H | Finish | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| PW-188007-NOE | 3/16 | 11 | 134 | 979 | 5.1 | Nickel Plated | i | i | - | Enquire Now |
| PZ-001143-NOE | 1/4 | 14 | 289 | 1602 | 5.2 | Nickel Plated | £11.00 | i |
50
|
Enquire Now |
| PW-312010-NOE | 5/16 | 16 | 400 | 2047 | 6 | Nickel Plated | i | i | - | Enquire Now |
| PW-375011-NOE | 3/8 | 18 | 312 | 1691 | 6 | Nickel Plated | i | i | - | Enquire Now |
| PW-375012-NOE | 3/8 | 19 | 400 | 3115 | 6.9 | Nickel Plated | i | i | - | Enquire Now |
| PW-375012-ZP | 3/8 | 19 | 400 | 3115 | 6.9 | Zinc Plated | £12.00 | 4000 |
100
|
|
| PW-500015 | 1/2 | 24 | 668 | 3560 | 8.3 | Nickel Plated | i | i | - | Enquire Now |
