Snap Bushings
Product Description

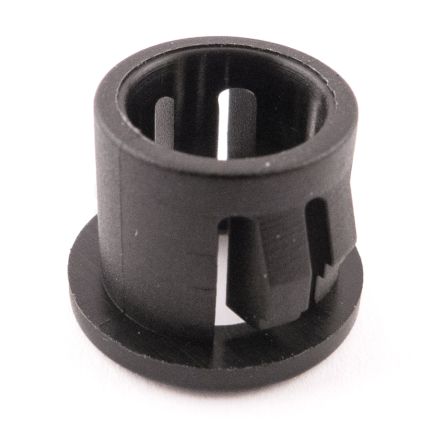

Snap Bushings are quick and easy to assemble by hand, ideal for insulating and protecting cables, hose and tubing.
Material
Nylon
Finish
Black
Specials
Further sizes and types are available upon request. For more information, please contact our sales office with the dimensions and the quantities that you require.
| Product Code | Hole Diameter | Panel Thickness | A | B | C | T | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| SB-040-BLK | 9.5 | 1.6 - 3.2 | 6.4 | 12 | 10.3 | 1.6 | £10.00 | 5500 |
100
|
|
| SB-060-BLK | 11 | 3.2 | 8 | 13.5 | 10.3 | 1.6 | £10.00 | 1854 |
100
|
|
| SB-090-BLK | 12.7 | 1.6 - 3.2 | 8 | 15 | 10.3 | 1.6 | £10.00 | 6000 |
100
|
|
| SB-120-BLK | 14.3 | 1.6 - 3.2 | 11.4 | 17 | 10.3 | 1.5 | £10.00 | 5000 |
100
|
|
| SB-150-BLK | 15.9 | 1.6 - 3.2 | 12.7 | 18.6 | 10.3 | 1.6 | £10.00 | 5000 |
100
|
|
| SB-200-BLK | 19.1 | 1.6 - 3.2 | 14.3 | 21.7 | 10.3 | 1.6 | £10.00 | 3000 |
100
|
|
| SB-210-BLK | 19 | 1.6 - 3.2 | 15.9 | 21.4 | 10.3 | 1.6 | £10.00 | 6000 |
100
|
|
| SB-230-BLK | 20 | 1.6 - 3.2 | 15.9 | 22.4 | 10 | 1.4 | £10.00 | 3900 |
100
|
|
| SB-290-BLK | 22.2 | 1.6 - 3.2 | 17.5 | 24.2 | 11.5 | 1.6 | £10.00 | 4000 |
100
|
|
| SB-300-BLK | 25.4 | 1.6 - 3.2 | 19.1 | 28.5 | 11.5 | 1.6 | £10.00 | 3020 |
100
|
|
| SB-340-BLK | 30.1 | 1.6 - 3.2 | 24.1 | 33.3 | 11.5 | 1.6 | £10.00 | 5000 |
100
|
|
| SB-350-BLK | 32 | 1.6 - 3.2 | 23.8 | 34.6 | 11.4 | 1.5 | £11.00 | 1750 |
100
|
|
| SB-380-BLK | 38.1 | 1.6 - 3.2 | 29 | 42.1 | 11.4 | 1.5 | £12.00 | 2700 |
100
|
|
| SB-400-BLK | 44.4 | 1.6 - 3.2 | 35 | 47.7 | 11.5 | 1.6 | £14.00 | 2108 |
100
|
|
| SB-410-BLK | 50.8 | 1.6 - 3.2 | 41.6 | 54.6 | 11.8 | 1.6 | £16.50 | 1800 |
100
|
