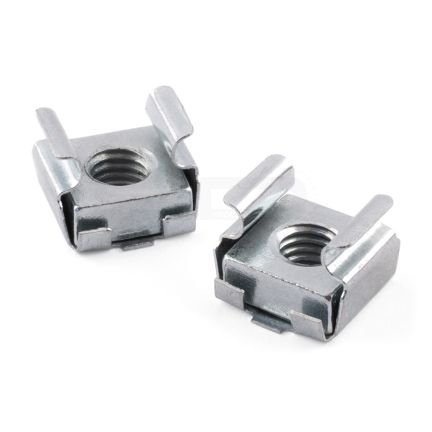

Cage Nuts

Product Description

Cage Nuts are quick and easy to assemble by hand and provide a simple method of attaching a female thread form to sheet steel applications, eliminating the need for welding or clinching.

Material
Cage - CS70 Carbon Spring Steel
Nut - Low Carbon Mild Steel

Finish
Zinc

Specials
Cage Nuts are also available in many different sizes, finishes and materials including stainless steels.

Product Code Thread Panel Range Sheet Hole A B C D Pricei Stock Pack Sizei No. of Packs
CGN4-009-BZP M3 0.7 - 1.6 6.7 x 6.7 10 8.5 7.2 5 £10.00 35352
100
+
-
CGN4-338-BZP M4 0.7 - 1.6 6.7 x 6.7 10 8.5 7.2 5 £10.00 9500
100
+
-
CGN4-030-BZP M4 0.7 - 1.6 9.5 x 9.5 13 12 8.6 6 £10.00 11600
100
+
-
CGN4-032-BZP M4 1.7 - 2.6 9.5 x 9.5 13 12 9.5 6 £10.00 5300
100
+
-
CGN4-034-BZP M4 2.7 - 3.5 9.5 x 9.5 13 12 10.2 6 £11.50 2800
100
+
-
CGN4-036-BZP M5 0.7 - 1.6 9.5 x 9.5 13 12 8.6 6 £11.50 19250
100
+
-
CGN4-038-BZP M5 1.7 - 2.6 9.5 x 9.5 13 12 9.5 6 £11.50 19415
100
+
-
CGN4-040-BZP M5 2.7 - 3.5 9.5 x 9.5 13 12 10.2 6 £11.50 3800
100
+
-
CGN4-042-BZP M6 0.7 - 1.6 9.5 x 9.5 13 12 8.6 6 £11.50 28009
100
+
-
CGN4-042-YZP M6 0.7 - 1.6 9.5 x 9.5 13 12 8.6 6 £12.10 i
100
Enquire Now
CGN4-070-BZP M6 1.7 - 2.6 9.5 x 9.5 13 12 9.5 6 £10.00 9420
100
+
-
CGN4-072-BZP M6 2.7 - 3.5 9.5 x 9.5 13 12 10.2 6 £10.00 7300
100
+
-
CGN4-080-BZP M6 0.7 - 3 9.5 x 9.5 12.9 11.1 9.8 5.8 £10.00 117304
100
+
-
CGN4-110-BZP M6 0.7 - 1.7 12.3 x 12.3 16.6 15 10 7.2 £13.00 i
100
Enquire Now
CGN4-112-BZP M6 1.8 - 3.2 12.3 x 12.3 16.6 15 11.4 7.2 £13.00 i
100
Enquire Now
CGN4-114-BZP M6 3.3 - 4.7 12.3 x 12.3 16.6 15 12.8 7.2 £13.00 1265
100
+
-
CGN4-116-BZP M6 4.8 - 6.2 12.3 x 12.3 16.6 15 14 7.2 £13.00 i
100
Enquire Now
CGN4-130-BZP M8 0.7 - 1.7 12.3 x 12.3 16.6 15 10 7.2 £13.80 48905
100
+
-
CGN4-132-BZP M8 1.8 - 3.2 12.3 x 12.3 16.6 15 11.4 7.2 £13.80 32212
100
+
-
CGN4-134-BZP M8 3.3 - 4.7 12.3 x 12.3 16.6 15 12.8 7.2 £17.00 1530
50
+
-
CGN4-136-BZP M8 4.8 - 6.2 12.3 x 12.3 16.6 15 14 7.2 £17.00 3800
50
+
-
CGN4-138-BZP M10 0.7 - 1.7 12.3 x 12.3 16.6 15 10 7.2 £15.10 1000
100
+
-
CGN4-140-BZP M10 1.8 - 3.2 12.3 x 12.3 16.6 15 11.4 7.2 £15.10 1644
100
+
-
CGN4-142-BZP M10 3.3 - 4.7 12.3 x 12.3 16.6 15 12.8 7.2 £15.10 900
100
+
-
CGN4-144-BZP M10 4.8 - 6.2 12.3 x 12.3 16.6 15 14 7.2 £13.75 2889
50
+
-
CGN4-146-BZP M8 0.7 - 1.7 14 x 14 20 18 13.5 10.4 i i - Enquire Now
CGN4-148-BZP M8 1.8 - 3.2 14 x 14 20 18 15 10.4 i i - Enquire Now
CGN4-150-BZP M8 3.3 - 4.7 14 x 14 20 18 16.5 10.4 £16.75 700
50
+
-
CGN4-152-BZP M8 4.8 - 6.2 14 x 14 20 18 18 10.4 i i - Enquire Now
CGN4-154-BZP M10 0.7 - 1.7 14 x 14 20 18 13.5 10.4 i i - Enquire Now
CGN4-156-BZP M10 1.8 - 3.2 14 x 14 20 18 15 10.4 £16.75 750
50
+
-
CGN4-158-BZP M10 3.3 - 4.7 14 x 14 20 18 16.5 10.4 i i - Enquire Now
CGN4-160-BZP M10 4.8 - 6.2 14 x 14 20 18 18 10.4 i i - Enquire Now
CGN4-162-BZP M12 0.7 - 1.7 14 x 14 20 18 13.5 10.4 £16.75 1900
50
+
-
CGN4-164-BZP M12 1.8 - 3.2 14 x 14 20 18 15 10.4 £16.75 3000
50
+
-
CGN4-166-BZP M12 3.3 - 4.7 14 x 14 20 18 16.5 10.4 £16.75 750
50
+
-
CGN4-168-BZP M12 4.8 - 6.2 14 x 14 20 18 18 10.4 £16.75 650
50
+
-
